- Place of Origin: tengzhou
- Brand Name: good

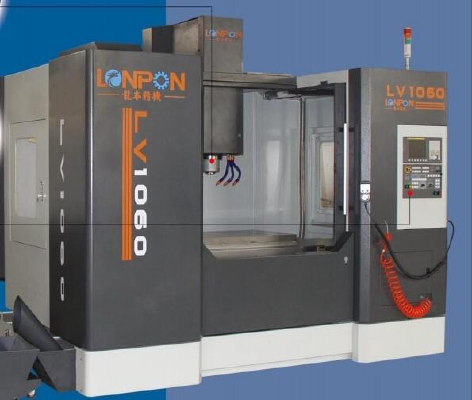

- Model Number: 1060/1060L
1060 three axis track
The 1060L three axis orbit
The SIEMENS 802D; Fanuc system; Syntec system; Mitsubishi system
The high speed and high precision spindle unit
The separation type electronic handwheel
The external interface 232
The indirect type automatic lubrication
The 16 knife library
Main technical parameters VMC1060/1060L
Stroke X axis mm 1000
Y axis mm 600
Z axis mm 600
Spindle end face to 100-650 mm
Distance from spindle center to column guide rail surface mm 655
Working table size mm 600 * 1300
Maximum load bearing mm 800
T groove width mm 18
T type slot number mm 5
Taper specification BT40
Spindle speed (optional) RPM 8000
Spindle motor kw 11
X axis motor Nm 22
Y axis motor Nm 22
Z axis motor Nm 22
Control system (optional) 802C
X, Y axis rapid movement rate mm 20000
Z axis fast movement speed mm 14000
Cutting feed rate 1-10000 mm/min
Positioning accuracy mm 0.006
Repeated positioning precision mm 0.003/300
The pressure is greater than or equal to 6 kg/cm2
The knife (optional) 16/20/24
Machine weight T 7.6
Machine size (L * w * h) mm 3300 * 2800 * 2400
