- Place of Origin: tengzhou
- Brand Name: good
- Model Number: Lathe
Main technical index
Company
GDC630
GDC900
Maximum rotary diameter of machine tool
Turning diameter of the machine Max
Mm
Six hundred and sixty
Nine hundred
Table diameter
Of the workable Diameter
Mm
Five hundred
Six hundred
Spindle speed series
Of spindle speeds Number
RPM
100-650 stepless
100-650 stepless
feed rate
Speed Cutting
Mm/min
0.1~1000
0.1~1000
Vertical moving distance of tool carriage
Vertical moving distance Turrent
Mm
Six hundred
Six hundred
Horizontal moving distance of tool carriage
Horizontal moving distance Turret
Mm
Four hundred and twenty
Five hundred and twenty
Longitudinal velocity
Fast moving speed Vertical
M/min
Four thousand
Four thousand
Lateral fast moving velocity
Fast moving speed Horizontal
M/min
Six thousand
Six thousand
Tool carrier form
Form tueet
Row of knives
Row of knives
Cutter bar cross section
Section Arbor
Mm*mm
30x30
30x30
Repeated positioning precision of machine tool
Repeatability Positioning
Mm
Zero point zero one two
Zero point zero one two
positioning accuracy
Accuracy Positioning
Mm
X/Z0.015/0.02
X/Z0.015/0.02
Main motor power
Motor power Main
KW
Fifteen
Fifteen
Outline dimension
Dimensions of machine Overall
Mm
2150x1950x2850
2450x2150x2850
main features

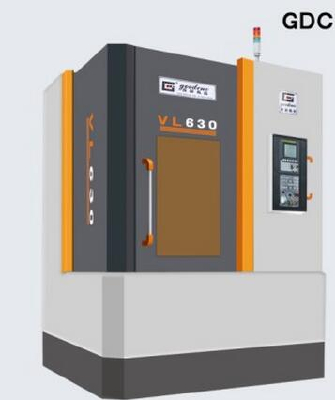

GDC series machine is an automatic NC machine tool, used to machining the internal and external cylindrical surface, conical surface, surface, cutting and chamfering machine, which is especially suitable for vehicle wheels, and other parts of the process of disc type.
* vertical guide rail structure, the column base, send slide adopt high grade gray iron, column and sliding seat guide rail adopts high-frequency quenching, guide moving surface plastic processing to ensure the accuracy and stability of machine tool used for a long time to maintain.
* machine spindle servo motor, suitable for heavy cutting, but also suitable for parts of the semi finishing and finishing.
*X/Z axis feed is controlled by servo motor. Z axis adopts counterweight, reliable structure, low failure rate.
* the X/Z axis of the machine tool is made of precision ball screws and screw bearings, which can meet the requirements of high precision and high rigidity cutting.
* machine tool using electric lubricating oil pump lubrication
* machine tool carrier with the cutter type, accurate and efficient.
* can be configured according to special tooling or electric tool, the user requirements of hydraulic chuck, cooling pump, chip removal, flushing device.
