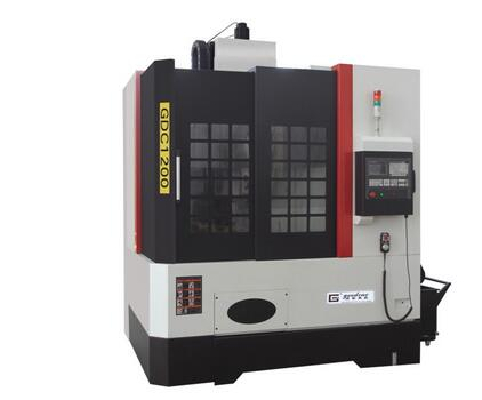

GDC1200 CNC vertical lathe

First, the use and characteristics of machine tools

GDC series machine is an automatic NC machine tool for machining parts, inside and outside cylindrical, conical, end, thread, cutting and chamfering processing, the machine is especially suitable for vehicle wheel drum, disc type parts etc..

1 vertical guide rail structure, column, base and the sliding seat are made of high grade cast iron column, and the slide guide rail adopts high-frequency quenching, guide moving surface plastic processing to ensure the accuracy and stability of machine tool used for a long time to maintain;

2 the spindle of the machine tool adopts the spindle servo motor, which is suitable for heavy cutting;

3.X/Z axis feed is controlled by servo motor. Z axis adopts counterweight, reliable structure, low failure rate;

4 the X/Z axis of the machine tool adopts domestic precision ball screws and screw bearings to meet the requirements of high precision and high rigidity cutting;

5 machine tool using electric lubricating oil pump lubrication;

6 the machine tool carriage adopts the cutter form, the accuracy is accurate, the efficiency is high, the price is low, no maintenance cost.

7 can be configured according to special tooling or electric tool, the user requirements of hydraulic chuck, cooling pump, chip removal, flushing device.

Two, the main technical parameters of the machine tool

Main technical parameters

GDC1200

Maximum rotary diameter of machine tool mm

One thousand and two hundred

Maximum cutting diameter

One thousand

Table diameter mm

Eight hundred

Spindle speed series

80-350 stepless

Cutting feed rate mm/min

0.1~1000

The vertical moving distance of the tool carriage mm

Seven hundred

Horizontal moving distance of tool carriage mm

Six hundred and eighty

Longitudinal fast moving velocity mm/min

Four thousand

Lateral fast moving velocity mm/min

Six thousand

Tool carrier form

Electric knife

Cutter bar cross section mmxmm

40x40

Repeat positioning accuracy of machine tool mm

Zero point zero one five

Positioning accuracy mm

X/Z0.018/0.02

Main motor power Kw

Eighteen point five

Outline dimension

2700x2300x3200
