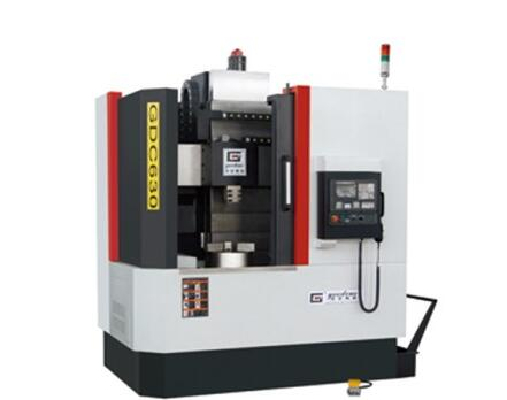

GDC630 CNC vertical lathe

GDC630 CNC vertical lathe

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: lianyungang
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-01-25
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  tengzhou
  • Brand Name:  good
  • Model Number:  GDC630

GDC630 CNC vertical lathe

Main features:

GDC series machine is an automatic NC machine tool for machining parts, inside and outside cylindrical, conical and grooving and chamfering, the machine is suitable for making the vehicle wheel drum, disc type parts etc..

The vertical guide rail structure, column, base and the sliding seat are made of high grade cast iron column, and the slide guide rail adopts high-frequency quenching, guide moving surface plastic processing to ensure the accuracy and stability of machine tool used for a long time to maintain;

The main machine adopts servo motor, suitable for heavy cutting; semi finishing and finishing are also suitable for parts;

The X/Z axes are controlled by servo motor automatic feed. Z axis adopts counterweight mechanism, reliable, low failure rate;

The X/Z axis machine adopts domestic precision ball screw and screw special bearings, high precision and high rigidity to meet the cutting requirements;

The machine adopts motor lubricating oil pump lubrication;

The machine tool adopts knife form, precision, high efficiency;

You can configure special tooling or electric tool, according to customer requirements of hydraulic chuck, cooling pump, chip removal, flushing device.

Main technical parameters:

Main technical parameters

GDC630

Maximum rotary diameter of machine tool (mm)

Six hundred and sixty

Table diameter (mm)

Five hundred

Spindle speed series (stage)

100-650 stepless

Cutting feed rate (mm/min)

0.1-1000

The vertical moving distance of the tool carriage mm

Six hundred

Horizontal moving distance of tool carriage mm

Four hundred and twenty

Longitudinal fast moving velocity (mm/min)

Four thousand

Lateral fast moving velocity (mm/min)

Six thousand

Tool carrier form

Row of knives

Cutter bar cross section (mmxmm)

30X30

Spindle motor kw

Fifteen

Control system (optional)

FANUC/MITSUBISHI

Positioning accuracy (mm)

0.015/0.02 X/Z

Repeated positioning accuracy mm

Zero point zero one two

Machine size (L * w * h) mm

2150 * 1950 * 2850


  • Place of Origin:  tengzhou
  • Brand Name:  good
  • Model Number:  GDC630
